Material Info
About

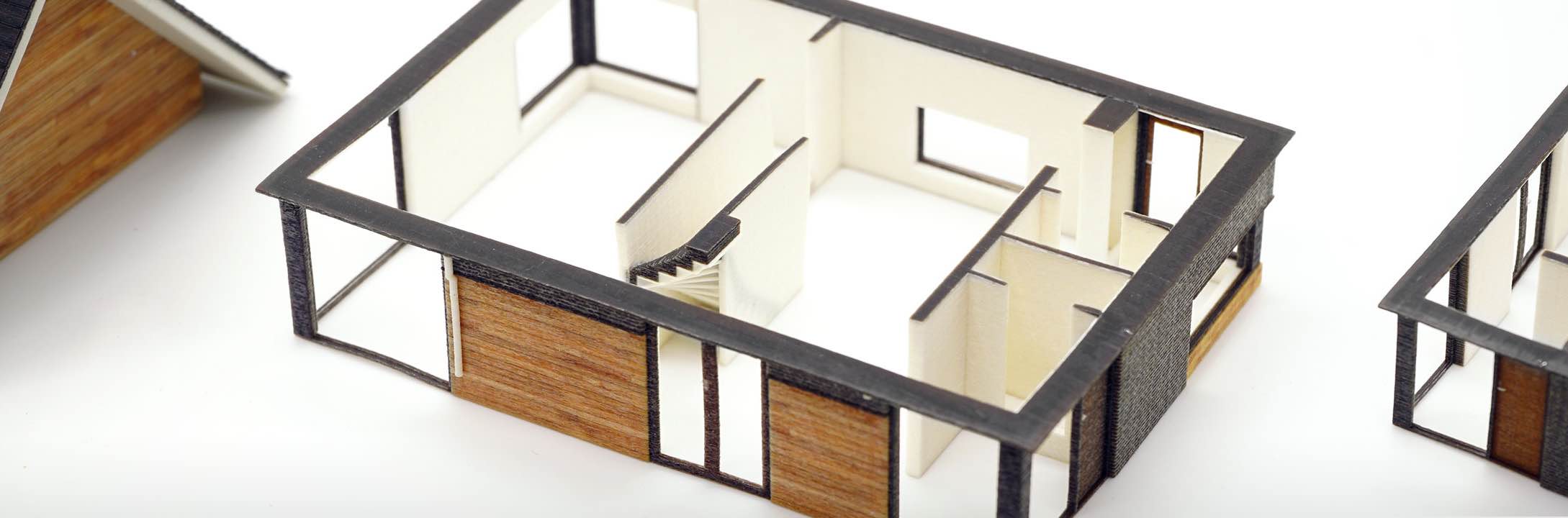

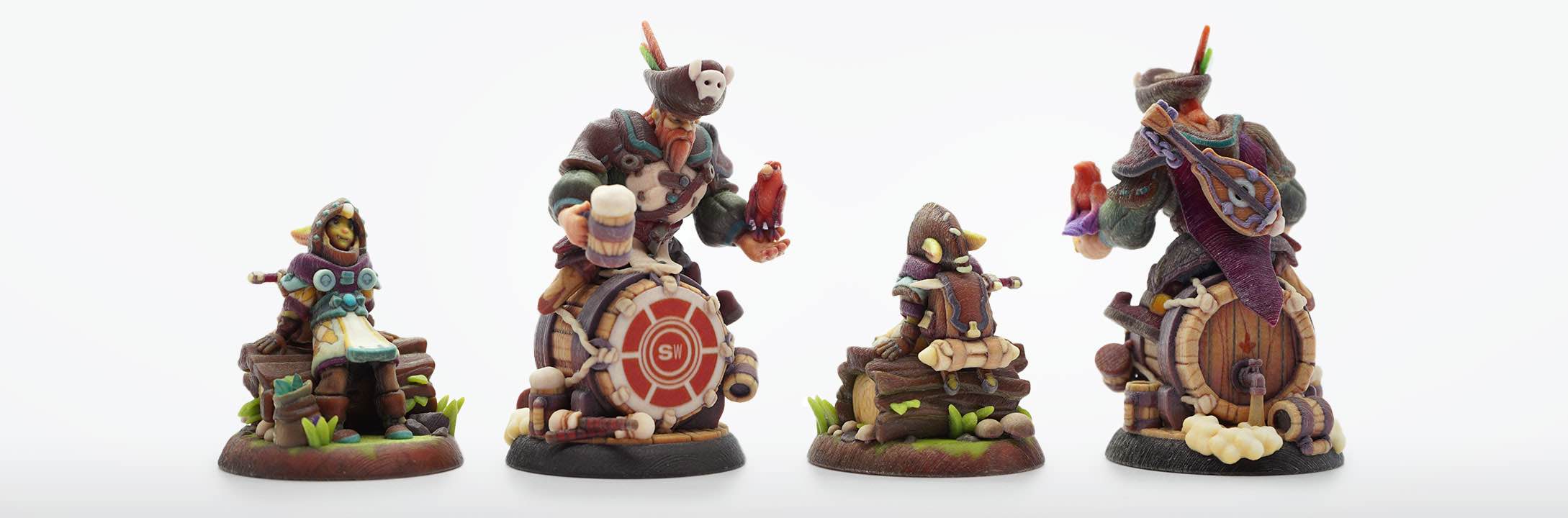

Using the UV curing inkjet process, the UV ink (CMYK, White) is cured layer by layer. This can produce objects with more than 10 million different colors. Final parts can satisfy professionals’ exacting requirement to make full color and fine modeling of high details, for example, figures, 3D maps and architecture mock-ups. And the post processing like over coating and attachment of screws is also able to apply to an object after printing.
Color & Finishes
Full Color
This finish has the supports removed and the parts are rinsed. Parts may have partial shiny surfaces and staircasing may be noticeable in hard light conditions
This finish has the supports removed and the parts are rinsed, then an additional matte coating is applied to reduce layer lines
Technology
- Material Jetting
Description
Design Guidelines
Bounding Box
Maximum Bounding Box
495 x 495 x 300 mm
Minimum Bounding Box
2.5 x 2.5 x 2.5 mm
The bounding box is a 3D imaginary outline of a box that encloses the smallest area occupied by your model. Your model must be within the minimum and maximum bounding box sizes. If the size of the model is close to the maximum bounding box, then the printing orientation will be restricted.
Walls
1.0 mm
A supported wall is connected at least on two sides of the wall, while an unsupported wall is connected only on one side of the wall. Walls that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wall geometry of the model. Please consider the size of your model and reinforce the walls or add support structures as needed as minimum guidelines will not always be adequate for large models.
Wires
0.8 mm
1.0 mm
A wire is a circular, rectangular or even triangular feature that is thinner in its unconnected directions than its length. A supported wire is connected at least on two sides of the model, while an unsupported wire is connected on one side of the model. Wires that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wire geometry of the model. Please consider the size of your model and reinforce the wires or add support structures as needed as minimum guidelines will not always be adequate for large models.
Details
0.8 mm
0.8 mm
For text, the ratio between width and depth, should be 1:1 and sans-serif fonts are preferred for line weight consistency.
Escape Holes
3.0 mm
1.0 mm
Escape holes are necessary to empty the support material of a hollow model. Two escape holes at the opposite ends of the model is optimal for the support removal process. Please consider the size of your model and make the escape holes bigger or add more escape holes as needed as minimum guidelines will not always be adequate for large models.
Clearance
0.4 mm
Clearance is the space between two individual parts in a model. If the space among the individual parts do not meet the minimum clearance, then parts can fuse together or can be difficult to clean. This is important for movable pieces like hinges, gears, etc.
Sprues
Sprues are wires that keep two or more parts together. Parts should be connected with a minimum of two sprues each. Please consider the size of your sprues and increase them as needed as minimum guidelines will not always be adequate for large models. If the sprues are within the guidelines and are broken, but there is no damage to your model, we will still ship them as is.
Interlocking & Enclosed Parts
Interlocking
Yes
Enclosed
No
Parts in File
99
Accuracy
± 0.05 mm +0.25%
