Stainless Steel 316L – 3D Printing Material
Stainless Steel 316L – 3D Printing Material
Material Info
About
Stainless Steel 316L is popular for use in many industrial applications. It is known for its excellent corrosion resistance and superior tensile strength at higher temperatures. This material is silver in color, this material features a granular finish that can be polished.
Stainless Steel 316L is manufactured using Binder Jetting Technology (BJT) from Desktop Metal on a Shop System. Unlike our Steel offering that is infused with bronze, this material is a single alloy, 100% Stainless Steel. More information about this material can be found in our Help Center.
Color & Finishes

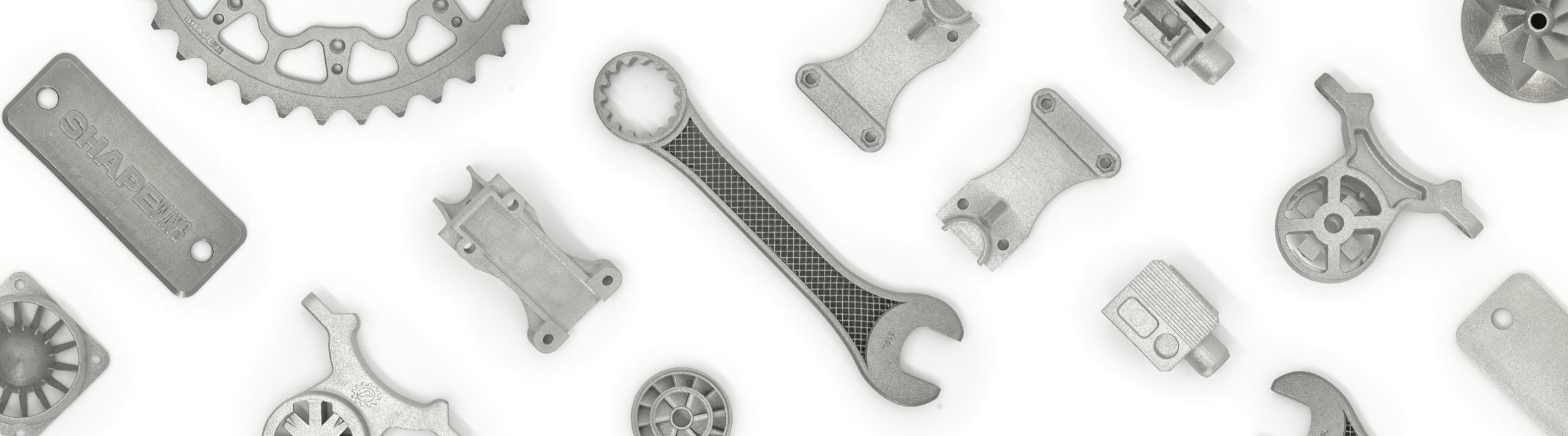

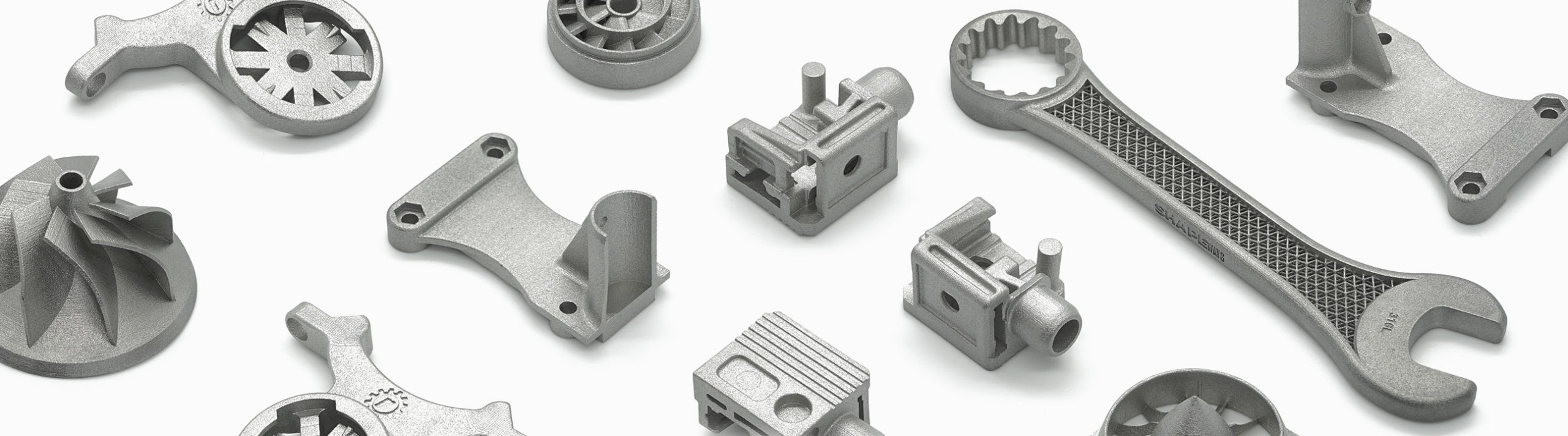

With a semi-matte finish and rough surface, parts are media blasted after sintering
Technology
- Binder Jetting
Technical Documents
Material Properties
Description
Design Guidelines
Bounding Box
Maximum Bounding Box
135 × 135 × 101.6 mm
Minimum Bounding Box
10 x 7.5 x 2.0 mm
The bounding box is a 3D imaginary outline of a box that encloses the smallest area occupied by your model. Your model must be within the minimum and maximum bounding box sizes. If the size of the model is close to the maximum bounding box, then the printing orientation will be restricted.
Walls
2.0 mm
A supported wall is connected at least on two sides of the wall, while an unsupported wall is connected only on one side of the wall. Walls that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wall geometry of the model. Please consider the size of your model and reinforce the walls or add support structures as needed as minimum guidelines will not always be adequate for large models.
Wires
2.0 mm
2.0 mm
A wire is a circular, rectangular or even triangular feature that is thinner in its unconnected directions than its length. A supported wire is connected at least on two sides of the model, while an unsupported wire is connected on one side of the model. Wires that do not meet the minimum requirements may not survive printing and cleaning processes. Additionally, models may still be rejected based on the wire geometry of the model. Please consider the size of your model and reinforce the wires or add support structures as needed as minimum guidelines will not always be adequate for large models.
Details
1.0 mm high & wide
1.0 mm high & wide
For text, the ratio between width and depth, should be 1:1 and sans-serif fonts are preferred for line weight consistency.
Escape Holes
5.0 mm
2.54 mm
Escape holes are necessary to empty the support material of a hollow model. Two escape holes at the opposite ends of the model is optimal for the support removal process. Please consider the size of your model and make the escape holes bigger or add more escape holes as needed as minimum guidelines will not always be adequate for large models.
Clearance
0.5 mm
Clearance is the space between two individual parts in a model. If the space among the individual parts do not meet the minimum clearance, then parts can fuse together or can be difficult to clean. This is important for movable pieces like hinges, gears, etc.
Interlocking & Enclosed Parts
Interlocking
No
Enclosed
No
Parts in File
Up to 250 parts accepted
Accuracy
± 5 %
